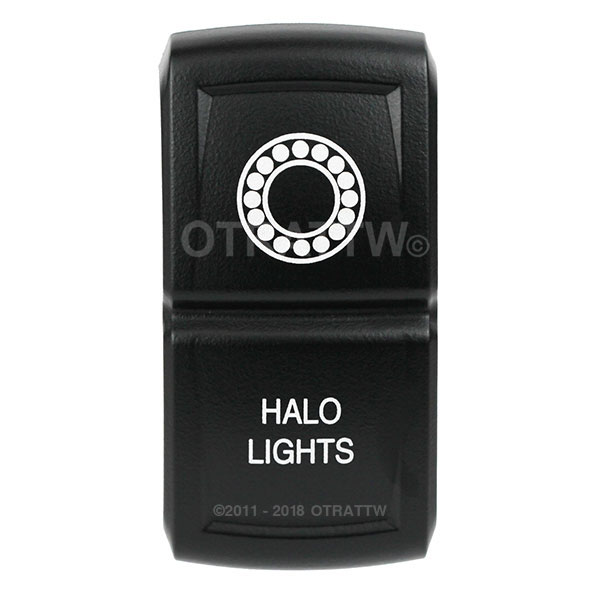

CONTURA XIV, HALO LIGHTS, UPPER INDEPENDENT

		(0 reviews)

SPST ON/OFF switch.
Upper LED is independently wired. If connected this will light up the upper SYMBOL area
Lower LED is ON when the upper part of the rocker is ACTIVATED. This will light up the lower INDICATOR BAR area.
Rated 20A 12V
No rear barriers between terminals. VCH housing connectors can be used with Packard 630 terminals. VCH connector and terminals are sold separately.
Insulated 1/4" female quick disconnect terminals can also be used. These are 4 and 5 terminal switches
Optional VPS-01 Panel Seal
Optional MUD BOOT Added protection from mud and debris
Optional Dynatex Dielectric Grease Locks out moisture
WIRING DIAGRAMS
* CUSTOM MADE switch add 1 business day lead time

Custom text: Maximum 2 lines, and 10 letters/spaces per line

If only 1 line of text is requested for your rocker, enter "NO TEXT" in the Line 2 text box.

SKU

V1D1FCCB-14HL-500

Our price:

$15.50

Text Change (Line 1)

Text Change (Line 2)

Etch Style

Choose LED Color

VPS-01 Panel Seal

Ask a question about this product

Details
Customers also bought
Customer feedback

O-Rings installed on the LED and/or the incandescent lights and the center shaft to seal out water, dust, and debris. Certified to IP68 for front panel components of the actual switch only. Sealed switch with optional panel gasket (VPS-CAR) will meet IP67 rating.

Switch mounting hole is .830 by 1.45 inches.

Panel Thickness Range

0 gaskets - .032, .062, .093, .125, .187, .250 inches
1 gasket - .030 to .109 & .147 to .157

Switch Depth

switch only, no rear barrier - 1.479 inches
switch only, rear barrier - 1.55 inches
switch with VCH or VC connector housing - 2.029 inches

Rocker Dimensions

Contura II - 1.933 by .940 inches
Contura V - 1.912 by 1.020 inches
Contura X - 1.910 by .960 inches

Environmental:

Sealing Sealed version: IP66/68, this rating applies to front panel components of the actual switch only, and signifies complete protection against dust as well as powerful jets of water.

Corrosion Mixed Flowing Gas (MFG) Class III 3 year accelerated exposure per ASTM B-827, B-845 Silver and gold contacts

Operating Temp. -40°C to +85°C

Vibration 1 Per Mil-Std 202F, Method 204D Test Condition A 0.06 DA or 10G’s 10-500 Hz. Tested with VCH connector. Test criteria - No loss of circuit during test, pre and post test contact resistance.

Vibration 2 Resonance search 24-50 Hz 0.40 DA

50-2000 Hz ±10 G’s peak Horizontal Axis 3-5 G’s max. Random

24 Hz 0.06 PSD-Gsq/Hz

60 Hz 0.50

100 Hz 0.50

200 Hz 0.025

2000 Hz 0.025

No loss of circuit during test; <10μ seconds chatter.

Shock Per Mil-Std 202F, Method 213B, Test Condition K @ 30G’s. Tested with VCH connector. Test criteria - No loss of circuit during test, pre and post test contact resistance.

Salt Spray Per Mil-Std 202F, Method 101D, Test Condition A, 96 Hrs. Sealed version only.

Dust Mil STD 810, Method 510.2 Air Velocity 300 Ft/Min Duration 16Hr

Thermal Shock Per Mil-Std 202F, Method 107F, Test Cond. A, -55°C to +85°C. Test criteria - pre and post test contact resistance

Moisture Resistance Per Mil-Std 202F, Method 106F, Test Criteria - pre and post test contact resistance

Ignition Protection All Contura switches with sealed construction meet the requirements of UL1500/ISO8846 for ignition protection, in addition to conformance with EC directive 94/25/EC for marine products.
