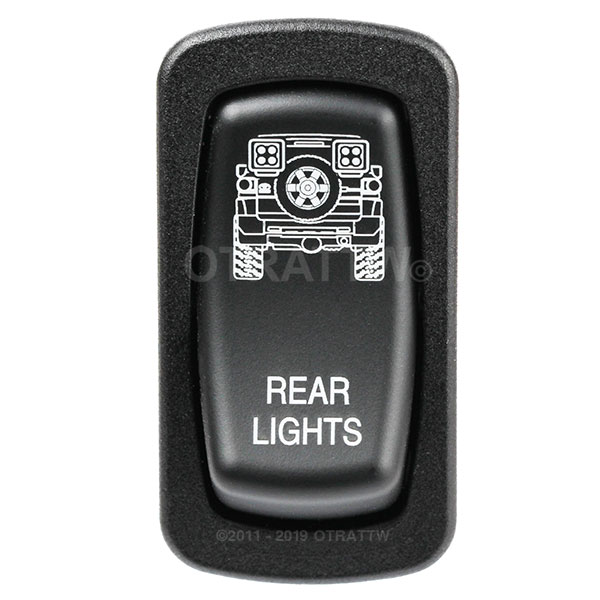

L-SERIES, TOYOTA FJ REAR LIGHTS, LOWER LED INDEPENDENT
- SPST ON/OFF switch.
- Upper LED is ON when the upper part of the rocker is pressed ON. This will light up the symbol area.
- Lower LED is independently wired. If connected this will light up the text area.
- Rated 20A 12V
- No rear barriers between terminals. LC1 housing connectors can be used with Packard 630 terminals. LC1 connector and terminals are sold separately.
- Insulated 1/4" female quick disconnect terminals can also be used. This is a 4 terminal switch with a common ground for both LEDs
- Optional Dynatex Dielectric Grease Locks out moisture
- Optional Harness Adapter Click link for info
Custom text: Maximum 2 lines, and 7 letters/spaces per line
- Details
- Customers also bought
- Customer feedback
Seal Protection
- Locks out elements such as water, dust & debris. Certified to IP67 for front panel components.
Switch mounting
- Fits into industry standard mounting hole of 1.734 x .867 in [44.0mm x 22.0mm].
Panel Thickness Range
- Acceptable Panel Thickness
.030 to .156 (.76mm to 3.96mm)
- Recommended:
.030, .062, .093, .125 and .156
Switch Depth
- Switch only from base to terminal end - 1.75 inches
- Switch with LC1-01 attached - 2.38 inches
Switch dimension
- Base with rocker installed - 1.97 X 1.02 inches
-
